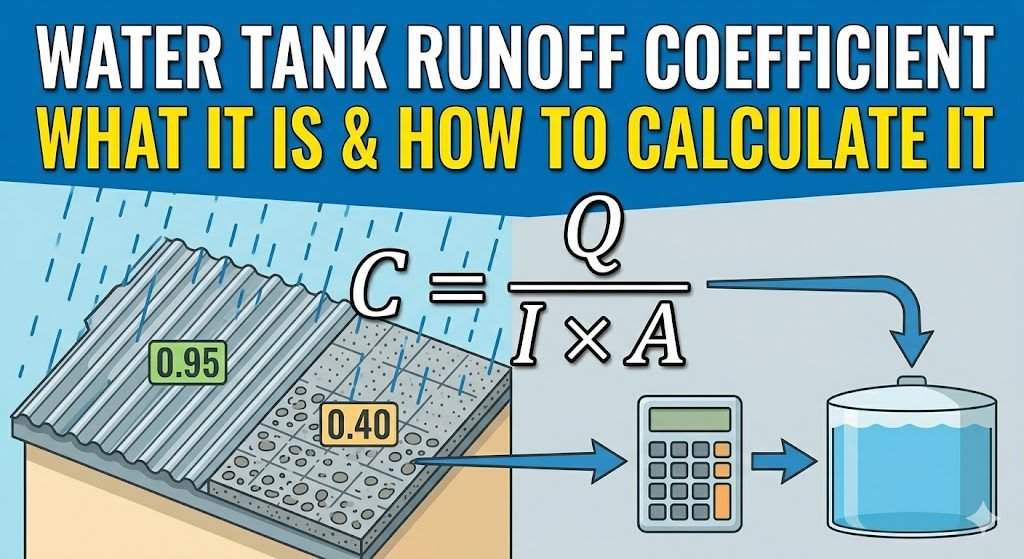

What Is Water Tank Runoff Coefficient and How Is It Calculated?

The runoff coefficient is the fraction of rainfall that actually reaches your tank after losses from absorption, evaporation, splashing, and wetting of the catchment surface. It’s expressed as a decimal between 0 and 1: a coefficient of 0.85 means 85% of the rain falling on your roof ends up as collectible water, and the remaining 15% never makes it to the tank.

Every step of a rainwater harvesting system depends on getting this number right. Once you have it, the annual rainwater collection calculator combines it with roof area and local rainfall to give a realistic annual yield figure.

The Calculation: How Runoff Coefficient Is Applied

The core formula is: Collectible volume = Rainfall depth × Catchment area × Runoff coefficient. For metric units: 50 mm of rain on a 100 m² roof with a coefficient of 0.85 gives 0.050 m × 100 m² × 0.85 = 4.25 m³ (4,250 litres). Skip the coefficient and you’d overestimate yield by 15% — which means a tank sized to run dry more often than the model predicts.

The coefficient isn’t a fixed property of the roof material alone. It shifts with rainfall intensity, roof condition, how dry the surface was beforehand, and slope. A light drizzle on a dry tile roof loses more to initial wetting and evaporation than a heavy downpour on the same roof. The long-run average coefficients used for annual sizing already blend this variation across event types.

Runoff Coefficients by Roof Material

Roof Material	Typical Runoff Coefficient	Notes
Metal roofing (Colorbond, Zincalume, tin)	0.90 – 0.95	Best performer; minimal absorption
Glazed ceramic tiles	0.85 – 0.90	Good; some absorption at joints
Concrete tiles	0.75 – 0.85	Absorbs water when dry; lower initial coefficient
Fibreglass / polycarbonate	0.90 – 0.95	Similar to metal
Painted or sealed concrete	0.70 – 0.80	Depends on surface condition and age
Asphalt shingles	0.70 – 0.80	Absorbs and leaches more than metal
Green / living roof	0.10 – 0.30	High absorption by growing medium
Gravel-topped flat roof	0.40 – 0.60	High losses to absorption and evaporation

These ranges are long-run averages. If you’re sizing a tank conservatively — where running out is the thing to avoid — use the lower bound for your roof material. If you’re estimating maximum potential yield, use the upper bound.

Factors That Adjust the Coefficient

Roof slope

Steeper roofs shed water faster, cutting down evaporation time during and after rain. A roof pitched at 30° or more performs closer to the upper end of its material’s coefficient range. Flat roofs (under 5° slope) hold water longer and lose more to evaporation, pulling performance toward the lower end.

Roof condition and age

Cracked, porous, or moss-covered roofing absorbs substantially more water than the same material in good condition. A 20-year-old concrete tile roof may perform 10 to 15 percentage points below a new one, and lichen or moss on any surface can knock 0.05 to 0.15 off the effective coefficient.

First-flush losses

If your system includes a first-flush diverter, the volume it diverts reduces effective yield and is sometimes folded into an adjusted coefficient. A diverter losing 4 litres per event across 80 annual events works out to 320 litres of annual loss — subtract this from gross yield when sizing storage.

Gutter and downpipe losses

Water left in gutters after rain, overflow during high-intensity events, and evaporation from hot metal gutters between events all chip away at effective yield. General industry guidance in Australia applies a system efficiency factor of 0.85 to 0.90 on top of the roof coefficient to account for these distribution losses — worth checking if you’re comparing figures against a rainwater harvesting setup in Australia, where this kind of adjustment is common practice.

Worked Example: Sizing a Tank Using Runoff Coefficient

A homeowner in a semi-arid region has a 120 m² metal roof (coefficient 0.90) and 450 mm average annual rainfall. Annual collectible volume = 0.450 m × 120 m² × 0.90 = 48.6 m³ (48,600 litres). Applying a 0.87 system efficiency factor for gutter losses brings that down to roughly 42,300 litres of usable annual yield.

That figure feeds directly into tank sizing — the rainwater harvesting calculator matches it against household demand and seasonal rainfall distribution to give a minimum tank size that avoids running dry. From there it’s worth checking whether that yield actually beats buying from municipal supply once installation and maintenance costs are factored in.

Common Mistakes

1. Using a coefficient of 1.0, or ignoring it entirely, for metal roofs. Even the best metal roofing loses 5 to 10% to wetting, evaporation, and splashback. Assume 100% collection and you’ll consistently overestimate yield. Use 0.90 to 0.95 as the realistic range.
2. Using one coefficient year-round in climates with sharp wet and dry seasons. A dry-season roof is hotter and drier, so initial wetting losses and evaporation are higher for every event. An annual average of 0.80 can mask a dry-season effective coefficient of 0.65 and a wet-season figure of 0.88. If you’re sizing for dry-season survival, use dry-season numbers for that calculation.
3. Applying the coefficient to roof surface area instead of catchment area. Catchment area is the horizontal projection of the roof, not its surface area — rainfall is measured vertically, so a steeply pitched roof covers more surface than footprint. The roof catchment area calculator converts roof dimensions to the correct horizontal figure.
4. Applying a textbook coefficient to a roof that hasn’t been inspected. A roof listed as concrete tile gets the standard concrete-tile coefficient in most calculations — but if it’s covered in moss with cracked or missing tiles, actual performance can run 20 points below that figure. Inspect the roof before using any table value in a sizing calculation.

Related Calculators You Might Need

Once you have your runoff coefficient and roof area, the annual rainwater collection calculator is the natural next step — it applies your coefficient to local rainfall data to give an annual yield. From yield, the rainwater harvesting calculator sizes the storage tank to your demand profile. If your system includes a first-flush diverter and you want to factor its volume loss into yield, the first flush diverter size calculator gives the diverter capacity, which you can subtract from gross yield. Finally, the rainwater savings calculator translates your adjusted yield into annual cost savings against mains supply.

Frequently Asked Questions

What runoff coefficient should I use for my roof?

Start with the material type from the table above, then adjust for slope, age, and condition. For a clean metal roof at moderate pitch, 0.90 is a reliable working figure. For concrete tiles in average condition, 0.80. If you’re unsure of your roof’s condition, use the lower end of the range — it produces a more conservative, safer tank size.

Does the runoff coefficient change with rainfall intensity?

Yes. During heavy rainfall (over 25 mm/hr), coefficients approach the upper limit of the range — there’s little time for evaporation and surface absorption is overwhelmed by volume. During light rain (under 5 mm/hr), initial wetting losses are proportionally larger and coefficients drop toward the lower end. Annual yield calculations using average rainfall implicitly blend both, which is why the long-run average coefficient is the right value for sizing.

How do I measure my actual runoff coefficient?

Know your roof area precisely, measure rainfall with a gauge, measure how much actually enters the tank, then divide tank inflow by (rainfall × roof area). Do this across 10 or more events of varying intensity and average the results. It’s more work than reading a table, but it accounts for your specific roof, gutters, and downpipes in a way no standard figure can.

Does roof colour affect the runoff coefficient?

Colour affects surface temperature, not porosity. A dark roof in full sun evaporates water faster during and right after light rain, which can shave 0.02 to 0.05 off the effective coefficient compared to a light-coloured roof of the same material. For heavy rainfall events the effect is negligible. It’s worth accounting for in hot climates with frequent light drizzle; elsewhere it’s not a meaningful factor.

Can I increase my runoff coefficient?

The main levers are roof material and condition. Replacing cracked concrete tiles with metal roofing typically raises the effective coefficient by 0.10 to 0.20. Cleaning moss, lichen, and debris off any roof helps noticeably, and improving gutter capacity to prevent overflow during heavy rain retains water that would otherwise be lost. None of this changes how the roof catchment area calculator computes your catchment size, but it directly increases the yield that coefficient delivers.
